Beam moving head light 380W 20R

384 DMX console

Model
LD-6106A
Size
620*230*160mm
Weight
5kg
Payment Team
Bank Transfer/ Credit card/L/C/Western Union
Delivery Time
3-5 working days after received deposit
Package
Export carton or road case
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:


MODEL

  • ◆ LD-6106A

POWER SUPPLY

  • ◆ AC110、AC220V-240V 50/60Hz

  • ◆ Power 30W

SPECIFICATION

◆ DMX512/1990 signal output

  • ◆ 384 control channels

  • ◆ There are 30 BANKS, each BANK has 8 programmable SCENES

  • ◆ There are 16 adjusters to adjust the output size

  • ◆ Power cycle to run the last Chase or Bank

  • ◆ Built-in MIC head for sound triggering

  • ◆ In the automatic trigger state, determine the automatic trigger time through the TAP SYNC key or the SPEED potentiometer

  • ◆ On the MIDI interface, it can be controlled with MIDI signals at any time

  • ◆ 4-digit digital display

  • ◆ BLACKOUT function can be controlled manually or MIDI remotely

  • ◆ CHASES programming and CHASES running functions can be controlled manually or by MIDI remote control

  • ◆ Output delay function, adjust the delay time with FADE TIME potentiometer

  • ◆ DMX signal output connector: XLR-D3F

  • ◆ LED bulb interface

  • ◆ Power input: DC9V 1000mA

SIZE

  • ◆Product size: 620*230*160mm

  • ◆Packing size: 620*440*4803m/6pcs (Carton)

WEIGHT

  • ◆ Net weight: 5KG

  • ◆ Gross weight: 26KG/6pcs(Carton)




❈  PRODUCT EFFECT ❈

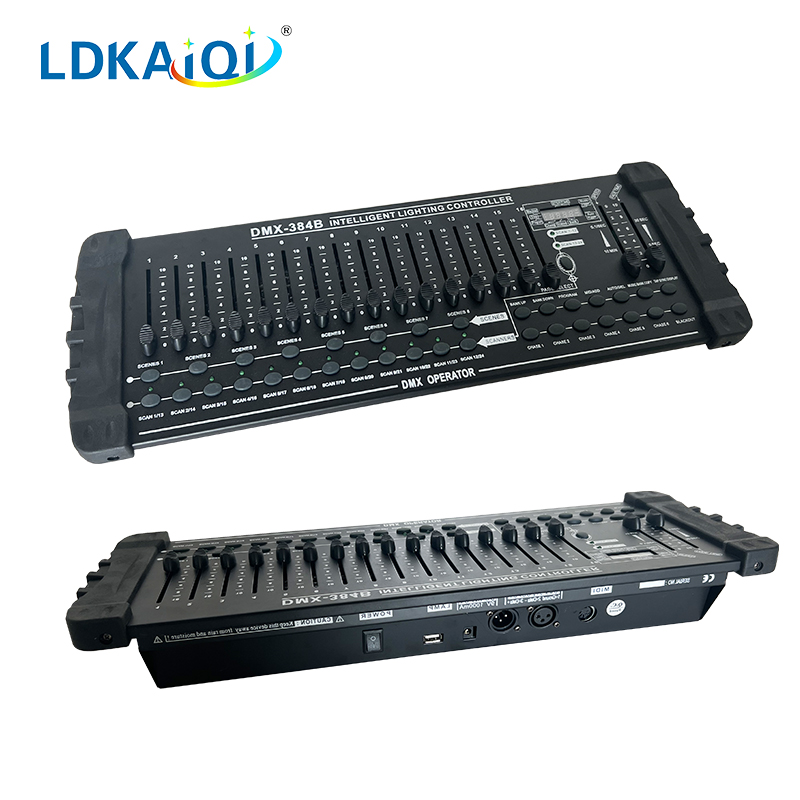

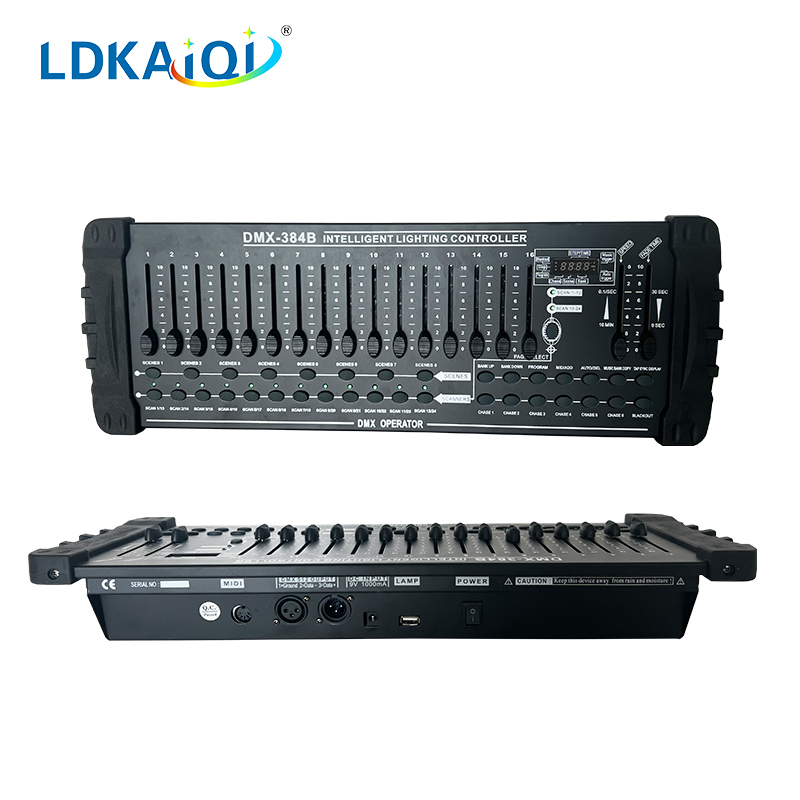

384 DMX console(图1)

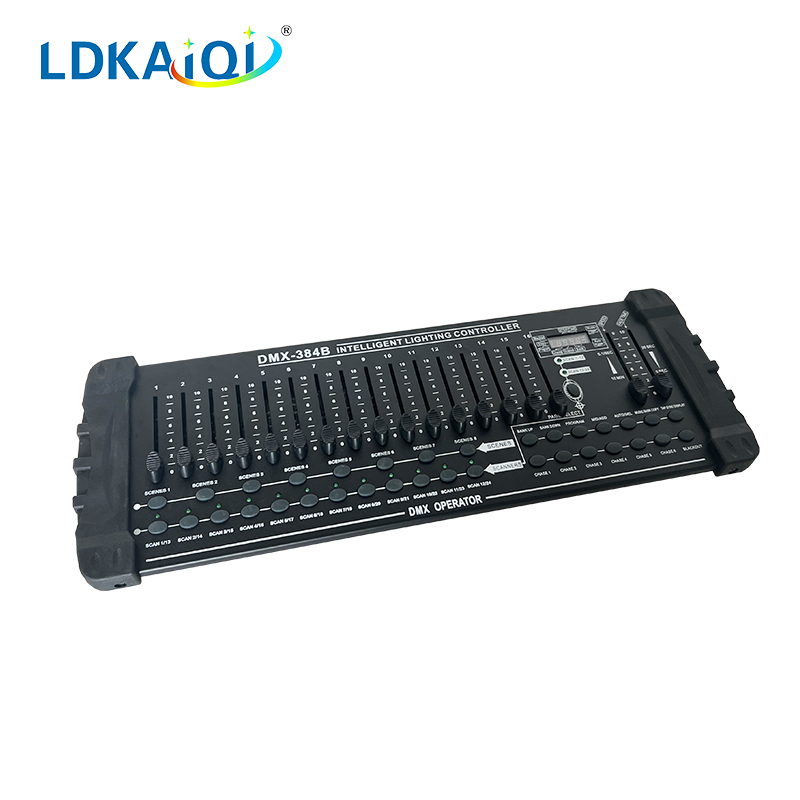

384 DMX console(图2)
