MODEL
| |
POWER SUPPLY | |

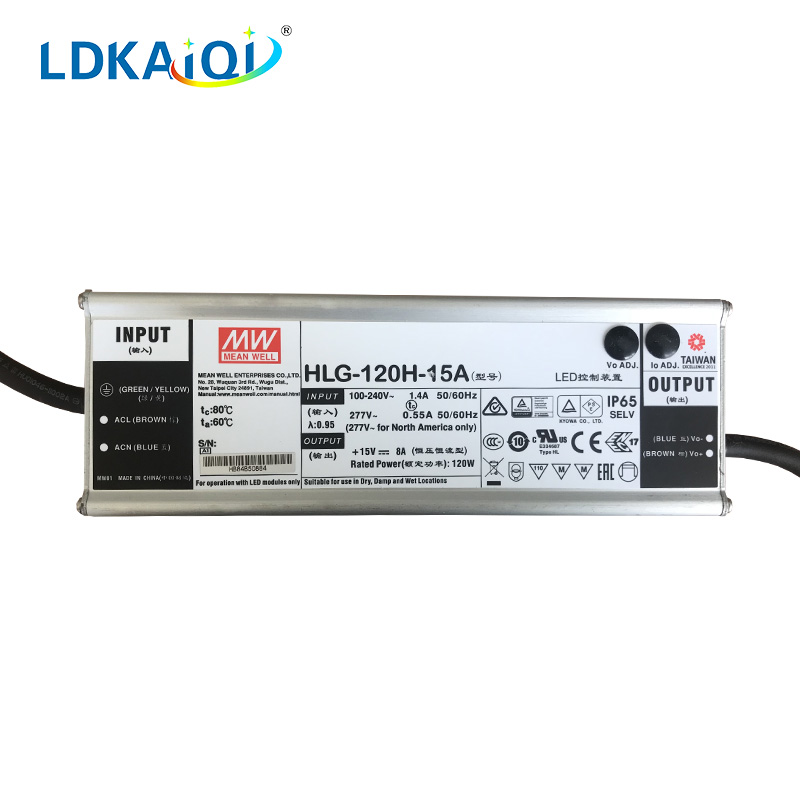

SPECIFICATION | ◆ Led: Cree 100W LED ◆ Color : White ◆ Beam angle: 15/20/25 degree ◆ Supply power: MEANWELL IP65 ◆ Working place: outdoor ◆ Projection distance: 40m ◆ LED life: 50000h ◆ Luminous flux: 8500Lm ◆ Color temperature: 6000K ◆ Gobo size: 67/46mm
|
LENS PARAMETERS | ◆ The distance between the 20-degree lens and the imaging length ratio is 1:0.35, which is 0.35 meters for 1 meter, 1.05 meters for 3 meters, and so on.The 15 degree lens is 1:0.25, the 25 degree lens is 1:0.45, and the default is a 20 degree lens.
|
HOUSING | |

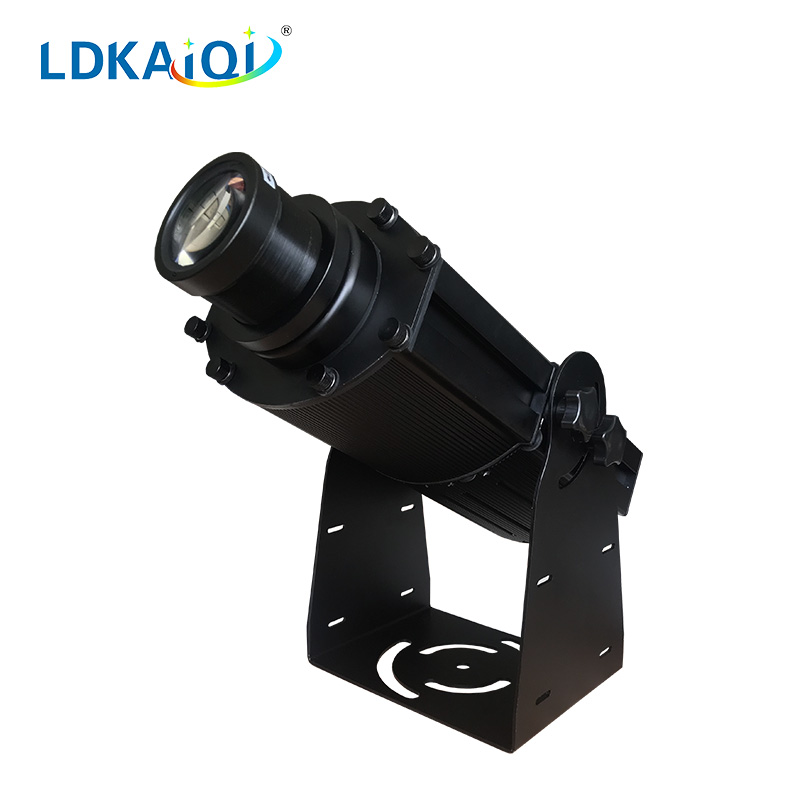

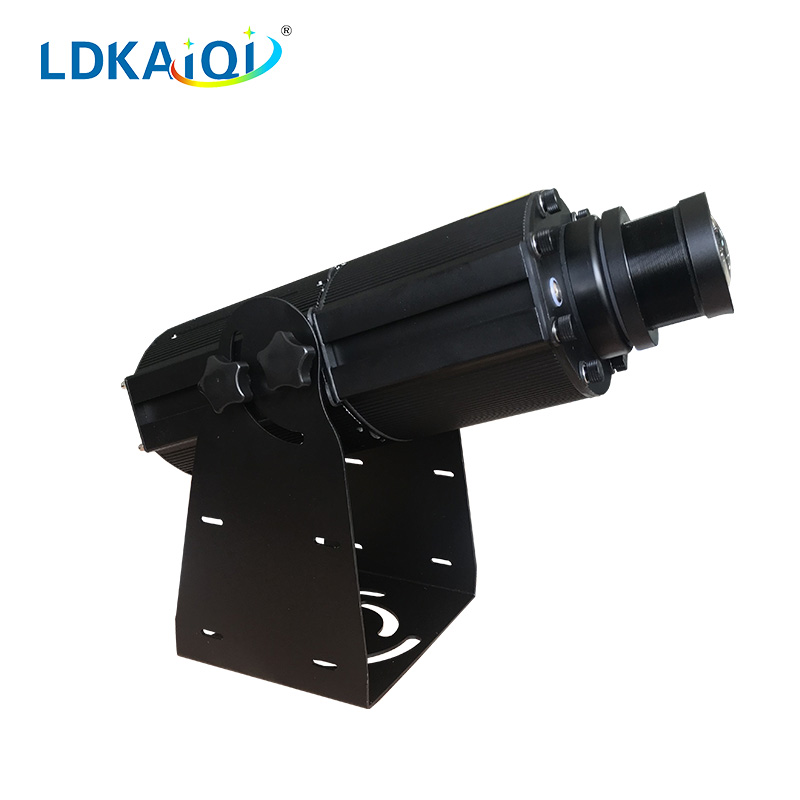

FEATURES | ◆ All-aluminum metal casing, high structural strength, lacquer or sandblasted oxidation, available in black, silver and white. ◆ The lamp itself is waterproof IP65 and can be directly installed outdoors. ◆ Heat pipe and air-cooling technology keeps the chip cool at all times, maximizing chip illumination and greatly delaying chip life ◆ CREE high power LED ◆ 5-piece wide-angle lens, the image is clear and natural, the imaging length is 50% larger, and the imaging area is 1 times larger. ◆ The pattern can be rotated and has a switch control ◆ Lamp projection direction can be adjusted freely ◆ Can project a pattern, the projection content can be customized, you can manually change the pattern
|
SIZE | |
WEIGHT | ◆ Net Weight: 6.7kg ◆ Gross Weight: 17kg
|
