POWER SUPPLY

• ◆ AC100V-240V/50-60Hz

• ◆ Power 430W

OPTICS

• ◆ LED: Imported new LED Module engine 350W

• ◆ Color Temperature(CCT): 8000K ;CRI>85

• ◆ Average lifetime: 5000hours

• ◆ Spot zoom angle: 4-35 degrees

• ◆ Wash angle:10-50 degrees

• ◆ Focusing system: linear adjustment from 4 meters to 50 meters

• ◆ Frost: 1 independent frost filter, soft and natural light spot

MOVEMENT

• ◆ Horizontal scan: 540 degrees (16bit precision scan) electronic error correction

• ◆ Vertical scanning: 270 degrees (16bit precision scanning) electronic error correction

COLORS/GOBOS

• ◆ Color: 8 colors + open. Color half-color function

• ◆ Color mixing system: linear CMY+CTO color mixing system

• ◆ Fixed gobos: 12 fixed patterns + ioen

• ◆ Rotating gobos: 7 glass patterns, each glass pattern can be independently forward and reverse

EFFECTS

• ◆ Prism system: standard single 3-facet prism and 8 prism, each prism can be independently forward and reverse

• ◆ Macro function: console reset function, self-propelled mode, master-slave mode

CONTROL

• ◆ Channel mode: 22/26 channels

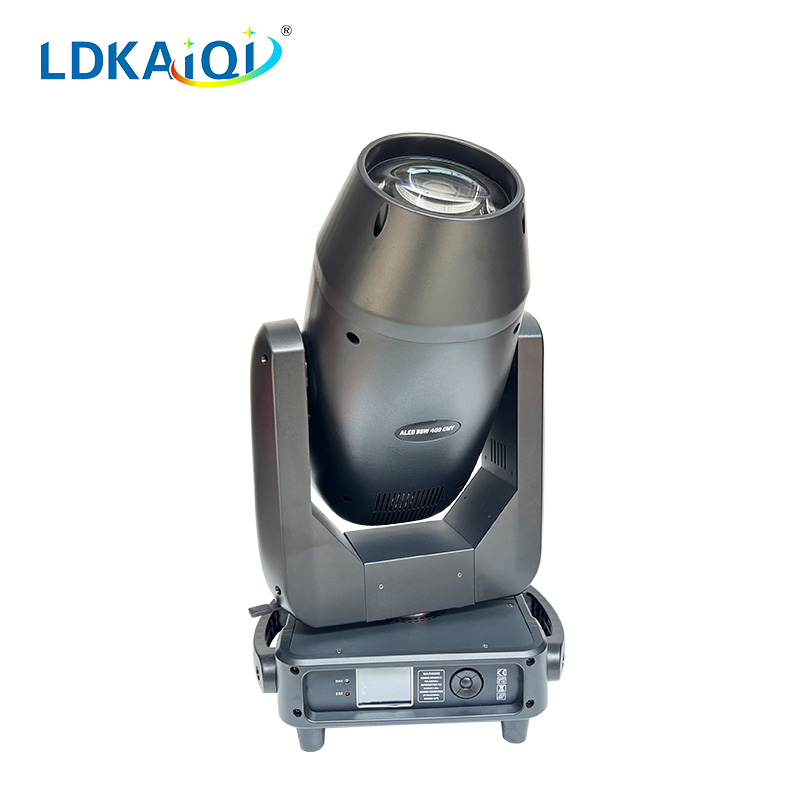

• ◆ Display mode: LCD touch screen display with display flip

• ◆ Control signal: International standard DMX512. With RDM function, online software upgrade is available, dial address code

HOUSING

• ◆ Surface: High temperature resistant plastic

• ◆ Color: Black

• ◆ IP Rating: IP20

DIMMER/STROBE

• ◆ Dimming system: 0-100% linear adjustment

  ◆ High-speed strobe: 0-30 times/sec. Adjustable speed strobe effect. Strobe macro function.

• ◆ Size: 380*270*650mm (LWH) ;

• ◆ 510*540*640mm/Carton

• ◆ 760*760*460mm/2pcs(flight case)

• ◆ Net Weight: 22.5kg

• ◆ Gross Weight: 36kg ; 78kg(2pcs in 1 flight case)
